High-pressure cooling and cleaning of the teeth and generous body cooling are vital to the operation of the blade.

Big Hot Saws

It is used for cutting red hot carbon and alloy steels (above 750°C). Larger thread spacing, possibly with extra canal space to prevent filling. High-pressure cooling and cleaning of the teeth and generous body cooling are vital to the operation of the blade.

Blade Materials:

POWERBLADE Carbon, Manganese Steel, normalized body 22 HRC and flame hardened teeth 48 to 54 HRC. Tough, crack-resistant blade body combined with hard, wear-resistant teeth to provide significantly longer blade life between sharpenings compared to medium carbon manganese steel blades.

Size Range:
  • 1000 mm to 2400 mm diameter (39 to 94 inches)
  • 6 mm to 16 mm thickness (0.236 to 0.63 inch)
  • Tooth Pitch 5 mm to 28 mm (0.2 to 11/8 inch)

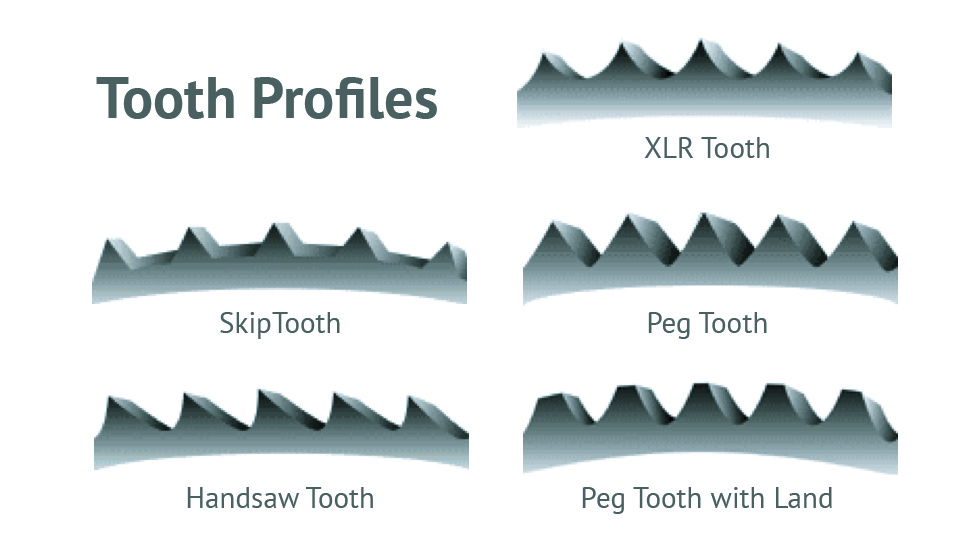

Tooth Profiles:
  • Standard profile is a 60° Dowel used for both hot and friction cutting
  • Special thread form for special applications
  • 60°Dowel, friction cutting steel pipe
  • Handsaw teeth – solid bars and logs
  • XLR and Skip thread – hot cutting jumbo beam
Blade Body Profiles:

Flat Ground – Normally recommended for solid sticks and logs

Knife Body Profile - Flat Ground

Hollow Turned – Normally recommended for profiles and beams

Blade Body Profile - Hollow Turned.png

The blades are precisely machined, balanced and tensioned to ensure even stability, vibration-free operation and accurate cutting at speeds from 4267 to 7620 m/min (14000 to 25000 ft/min).
