Droplet separators have long played a vital role in many process operations and scrubbing plants. The topic of Droplet Separators is gaining particular importance as environmental protection regulations become increasingly stringent, requiring the significant reduction of pollutants carried by gases from scrubber plants.

Such arrangements require the installation of high-performance droplet separators that can capture even the finest droplets, usually less than 10 µm in diameter, while creating as little pressure loss as possible. Working closely with plant operators and scientific institutes, Lechler has developed a variety of droplet separators that have proven to be highly successful in many areas of industry:

• In reducing environmental pollution caused by existing facilities
• in gas washing plants
• in the chemical industry
• in the wood pulp industry
• in air conditioning and ventilation systems
• on offshore platforms
• in cooling towers and evaporative condensers
• Wherever the finest droplets must be effectively separated from vertical gas streams

Lechlerin Droplet Separator Systems are customized solutions as each of these applications has unique requirements.

The horizontal gas flow drop separator system is available in different materials. Universally applicable droplet separator system, proven for decades.

Predetermined, horizontal gas flow droplet separator system for tight installation conditions. Profile geometry with angled inlet and outlet.

High-performance droplet separator system with horizontal gas flow for the highest demands. Suitable for high flow rates.

Vertical flow drop separator system with standardized profile widths. Good separation performance with low pressure losses.

Vertical gas flow droplet separator system with complex profile geometry for highest separation performance. Ideal for handling high liquid volumes.

High variability vertical flow drop separator. It is adaptable to different operating requirements and is pre-designed for high dust loads.

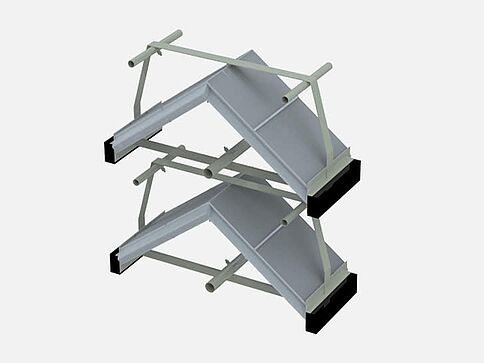

2-stage drip separator system with integrated cleaning system for installation on two levels.

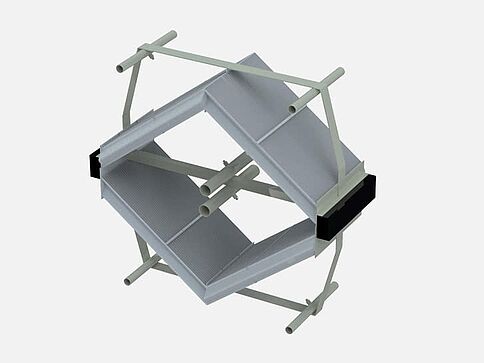

2-stage drip separator system with integrated cleaning system for single-level installation. This system is optimized for limited installation spaces.

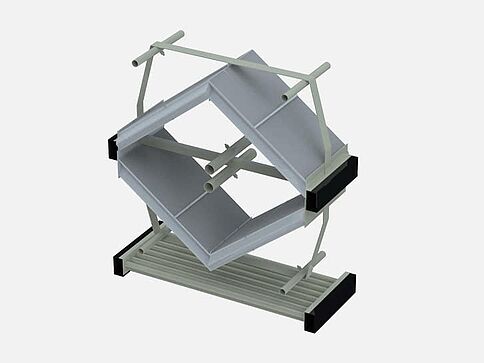

3-stage drip separator system with integrated cleaning system for installation on two levels. The first separation stage consists of horizontally arranged pipes for preliminary separation and flow optimization.

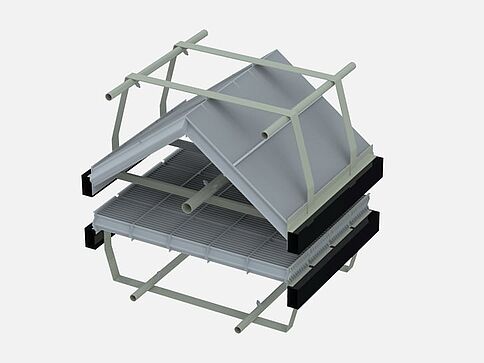

2-stage drip separator system with integrated cleaning system for installation on two levels. The first separation stage consists of LTV 400 as the flat separator level.
