Dual-fluid nozzles are available for every cooling strategy and machine type.

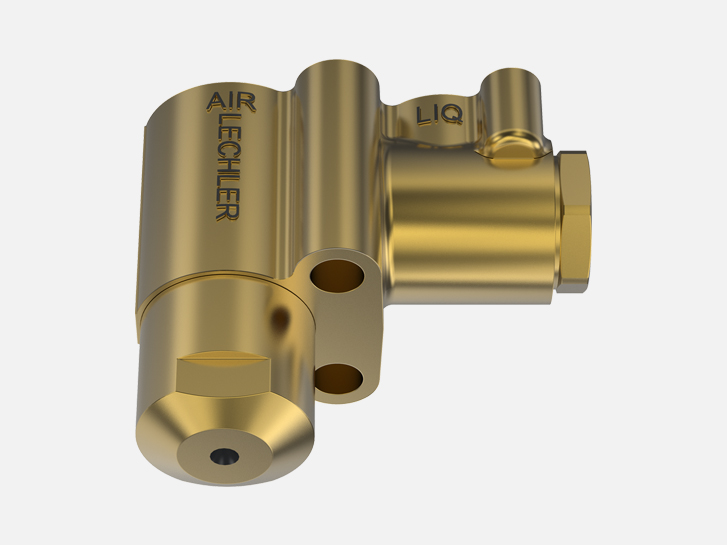

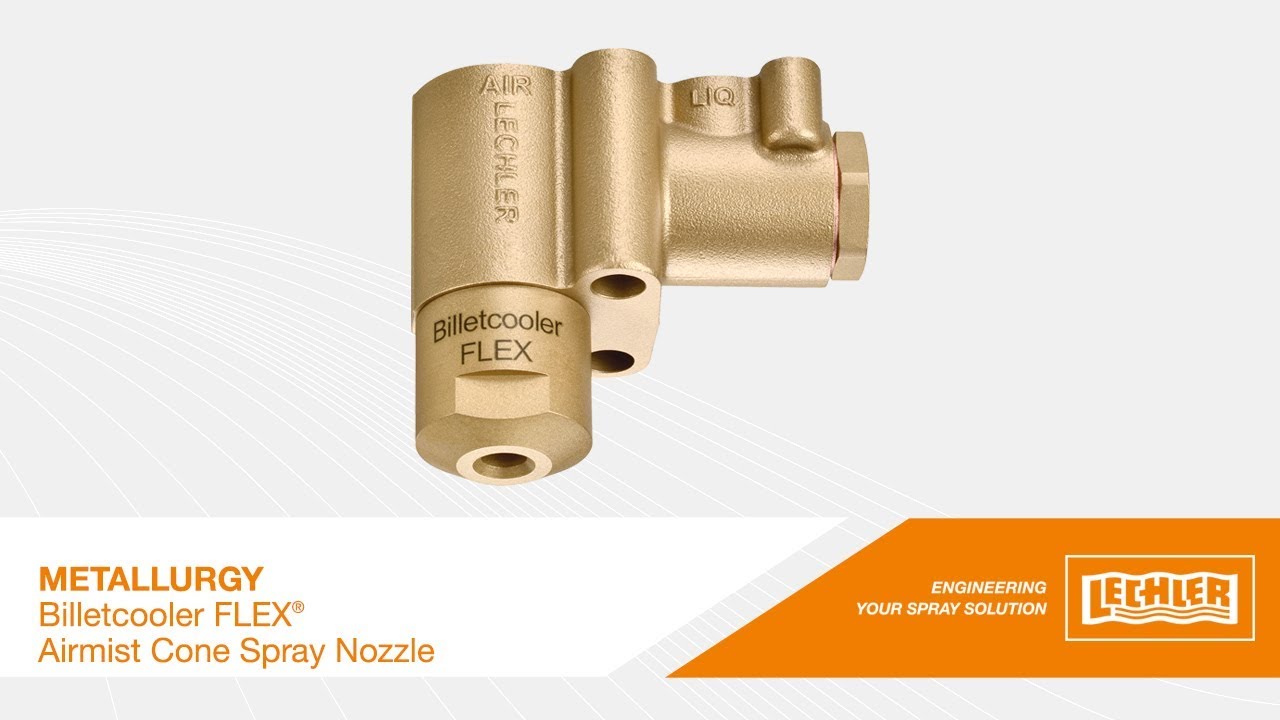

Billet Cooler FLEX
  • Constant spray angle within throttle ratio (60°)
  • Water flow rate: 0.3 - 8 l/min
  • Footprint: round
  • Flexible spray water distribution

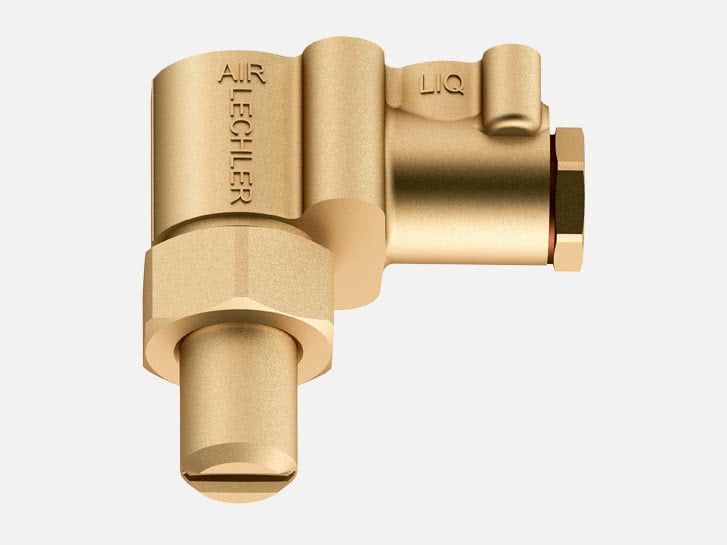

Billet Coolant Oval Spray
  • Installation on horizontal spray rings as well as vertical nozzle heads
  • Spray angle: 60/90° (wide), 30/45° (deep)
  • Flow rate range 0.4 l/min to 12.4 l/min
  • Footprint: oval

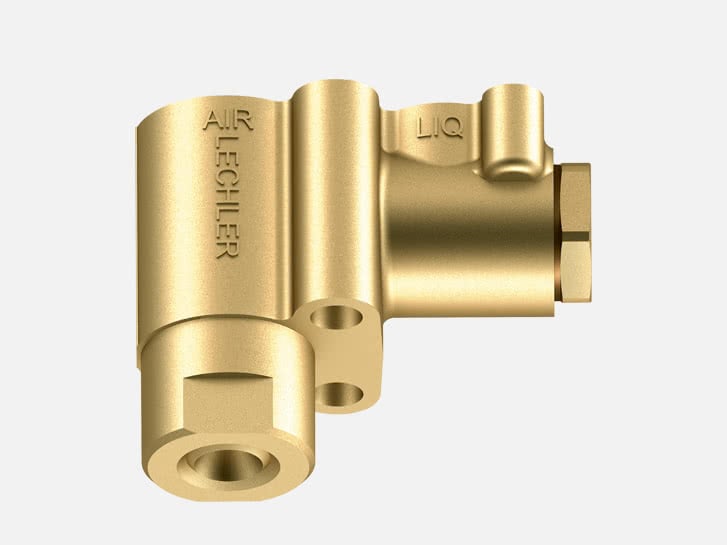

Log Coolant Cone Spray
  • Installation on horizontal spray rings as well as vertical nozzle heads
  • Spray angle: 45°, 60°, 90°
  • Flow rate range 0.4 l/min to 8.0 l/min

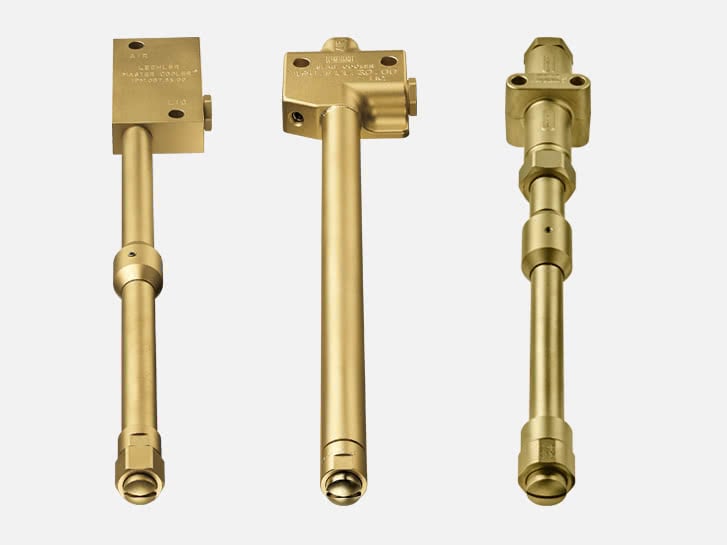

MasterCooler SMART
  • Vertical piping with square pipes
  • Mounted on vertical adapter plates
  • Spray angle: 50°, 80°, 90°, 110°, 120°
  • Volume rate at 7 bar: 5.70 l/min to 51.1 l/min

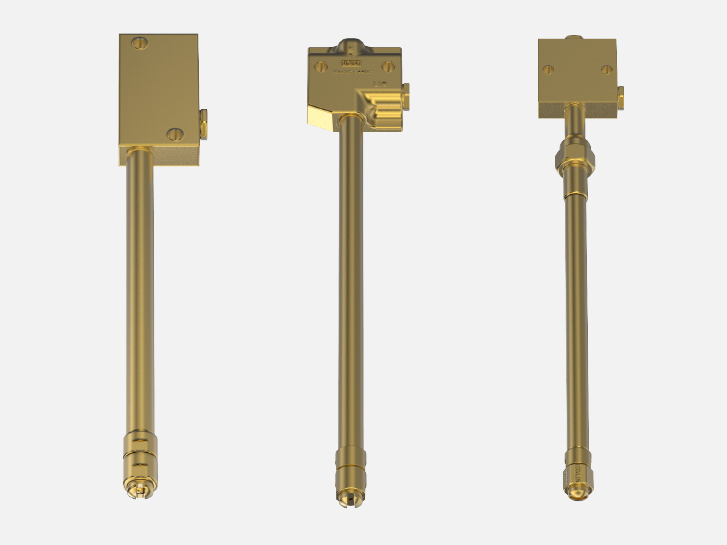

Floor CoolerECO
  • Reducing compressed air consumption results in reduced energy consumption, reduced operating costs and reduced CO 2 emissions
  • Excellent cost/performance ratio (return on investment <1 year)
  • Plug and spray: No modifications to segment pipes required, conversion possible during regular segment maintenance, return to current state possible
  • Proven concept – high operational safety

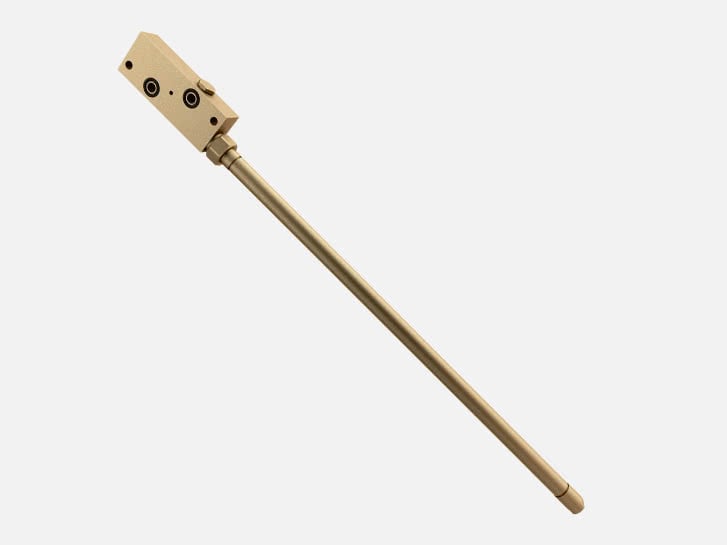

Mastercooler HARD HARD COOLING
  • Installation on horizontal spray rings as well as vertical nozzle heads
  • Spray angle: 45°, 60°, 90°
  • Flow rate range 0.4 l/min to 8.0 l/min
